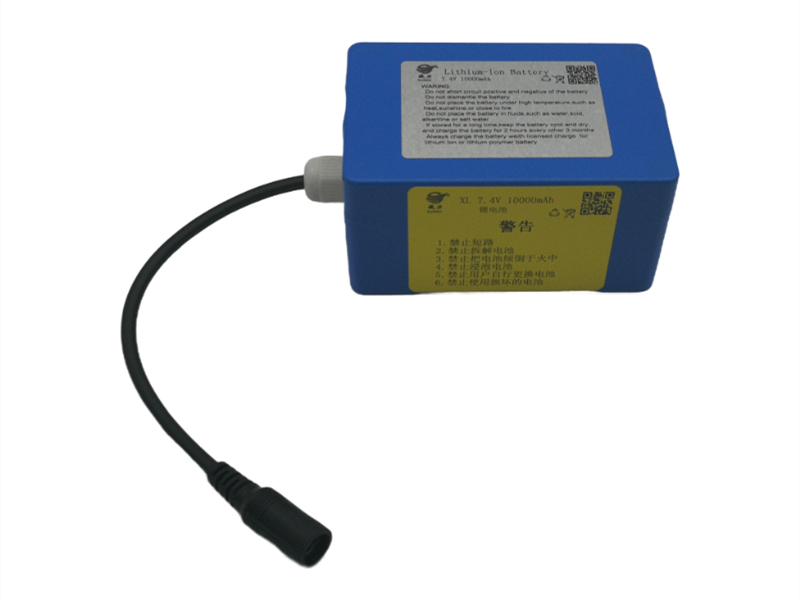

7.4V cylindrical lithium battery Product model: XL 7.4V 10000mAh
7.4V cylindrical lithium battery technical parameters (specific design acco♋rding to customer requirements-voltage/capacity/size/line)
Single battery model: 18650
·Single battery voltage: 3.7V
·Nominal voltage after the battery pack is assembled: 7.4V
·Single battery capacity: 2.5Ah
·Battery combination mode: 2 strings and 4 parallels
·Battery voltage range after combination: 5.0~8.4V
·Battery capacity after combination: 10Ah
·Battery pack power: 74Wh
·Battery pack size: 50*80*85mm
·Maximum discharge current: <10A
·Instantaneous discharge current: 20~30A
·Maximum charging current: 0.2~0.5C
·Charging and discharging times: >500 times
·Main chip: (Seiko, TI)
7.4V cylindrical lithium battery
· Conform to relevant national or international battery standards
&♋nbsp;🌞· All battery products are tested before leaving the factory
